Export Microsoft Planner Instances and Details Using Graph API and PowerShell

I recently had a requirement to include Planner instances in a tenant to tenant migration I was carrying out. The options for Planner migration are few and far between and the tooling we had in place was only scoped to migrate data. After some investigation, it was a job for Microsoft Graph API. I’ve begun building a scripted solution for migration of Planner instances, Buckets and Tasks. As the first iteration of this, I’ve created a PowerShell / Graph script which will export Planner and contents to a batch of CSV files. This is a good starting point to size the migration.

To prepare for the below script, we first need an application registration with the following permissions:

  • Group.ReadWrite.All – This is required to set Group ownership for the service account and to poll the group for Planner instances
  • User.Read.All – This is required to view users

We then need to install and import the MSAL.PS module as per my previous post.

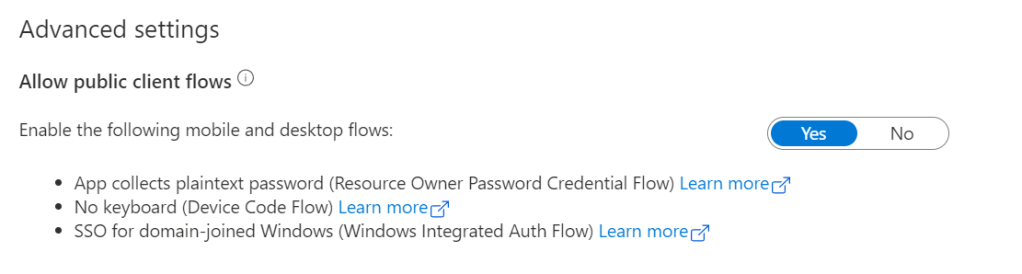

Finally we need to allow Public Client Flows in the Authentication blade of our Application Registration.

We also need to create a folder “C:\temp” to hold our results.

Running the Script

To run the script, we need two pieces of information. The Application ID of our registration and the Directory ID of our tenant. Import the script as a module and run the below command:

exportplanner -clientId <Application ID> -tenantId <Tenant ID>

The script will provide us with a device authentication code as per the previously mentioned post, we enter this code in https://microsoft.com/devicelogin and sign in with our admin account.

The script will add our admin account as an owner and member of all groups in the tenant and then pull the details of each planner instance. These details will be output to C:\temp in the following formats:

  • Planslist.csv – This is a complete list of Plans and associated Group IDs
  • <GUID>-buckets.csv – This is a list of the buckets in a particular Plan. The GUID in the name is correlated with the planID in Planslist.csv
  • <GUID>-Tasks.csv – This is a list of the tasks in a particular Plan. The GUID in the name is correlated with the planID in Planslist.csv. The bucket ID is also included for cross referencing

The script is hosted on GitHub here. This is used to illustrate how we could go about this task and not recommended to run in production without understanding the details and customizing where required. The code is also listed at the bottom of this post.

This script was created as the foundation for a full Planner migration tool and there is still a great deal of work to do to handle errors and add the import functions. Hopefully it will help shed some light on how we would go about this requirement and the power available in using the Graph API. I will post here as I update the tool and hopefully get to a full working result.

##Author: Sean McAvinue
##Details: Used as a Graph/PowerShell example,
##          NOT FOR PRODUCTION USE! USE AT YOUR OWN RISK
##          Exports Planner instances to CSV files
function GetDelegatedGraphToken {

    <#
    .SYNOPSIS
    Azure AD OAuth Application Token for Graph API
    Get OAuth token for a AAD Application using delegated permissions via the MSAL.PS library(returned as $token)

    .PARAMETER clientID
    -is the app clientID

    .PARAMETER tenantID
    -is the directory ID of the tenancy

    .PARAMETER redirectURI
    -is the redirectURI specified in the application registration, default value is https://localhost

    #>

    # Application (client) ID, tenant ID and secret
    Param(
        [parameter(Mandatory = $true)]
        [String]
        $clientID,
        [parameter(Mandatory = $true)]
        [String]
        $tenantID,
        [parameter(Mandatory = $false)]
        $RedirectURI = "https://localhost"
    )

    $Token = Get-MsalToken -DeviceCode -ClientId $clientID -TenantId $tenantID -RedirectUri $RedirectURI

    return $token
}


function RunQueryandEnumerateResults {
    <#
    .SYNOPSIS
    Runs Graph Query and if there are any additional pages, parses them and appends to a single variable

    .PARAMETER apiUri
    -APIURi is the apiUri to be passed

    .PARAMETER token
    -token is the auth token

    #>
    Param(
        [parameter(Mandatory = $true)]
        [String]
        $apiUri,
        [parameter(Mandatory = $true)]
        $token

    )

    #Run Graph Query
    write-host running $apiuri -foregroundcolor blue

    $Results = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token)" } -Uri $apiUri -Method Get -SkipHttpErrorCheck)

    #Output Results for debug checking
    #write-host $results

    #Begin populating results
    $ResultsValue = $Results.value

    #If there is a next page, query the next page until there are no more pages and append results to existing set
    if ($results."@odata.nextLink" -ne $null) {
        write-host enumerating pages -ForegroundColor yellow
        $NextPageUri = $results."@odata.nextLink"
        ##While there is a next page, query it and loop, append results
        While ($NextPageUri -ne $null) {
            $NextPageRequest = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token)" } -Uri $NextPageURI -Method Get)
            $NxtPageData = $NextPageRequest.Value
            $NextPageUri = $NextPageRequest."@odata.nextLink"
            $ResultsValue = $ResultsValue + $NxtPageData
        }
    }

    ##Return completed results
    return $ResultsValue


}

function ListGroups {
    <#
    .SYNOPSIS
    Runs Graph Query to list groups in the tenant

    .PARAMETER token
    -token is the auth token

    #>
    Param(
        [parameter(Mandatory = $true)]
        $token

    )
    ##Gets Unified Groups
    $apiUri = "https://graph.microsoft.com/beta/groups/?`$filter=groupTypes/any(c:c+eq+'Unified')"
    $Grouplist = RunQueryandEnumerateResults -token $token.accesstoken -apiUri $apiUri

    Write-host Found $grouplist.count Groups to process -foregroundcolor yellow

    Return $Grouplist

}


function SetGroupOwnership {
    <#
    .SYNOPSIS
    Runs Graph Query to list groups in the tenant

    .PARAMETER token
    -token is the auth token

    .PARAMETER GroupList
    -List of unified Groups in the tenant
    #>
    Param(
        [parameter(Mandatory = $true)]
        $token,
        [parameter(Mandatory = $true)]
        $Grouplist
    )

    foreach ($Group in $Grouplist) {

        $RequestBody = @"
        {

            "@odata.id": "https://graph.microsoft.com/v1.0/me"

        }
"@


        write-host Adding account as owner of $group.id
        $apiUri = "https://graph.microsoft.com/beta/Groups/$($Group.id)/owners/`$ref"
        ##Invoke Group Request
        $Group = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.AccessToken)" } -ContentType 'application/json' -Body $RequestBody -Uri $apiUri -Method Post)
    }
    start-sleep 60
    foreach ($Group in $Grouplist) {

        $RequestBody = @"
        {

            "@odata.id": "https://graph.microsoft.com/v1.0/me"

        }
"@


        write-host Adding account as member of $group.id
        $apiUri = "https://graph.microsoft.com/beta/Groups/$($Group.id)/members/`$ref"
        ##Invoke Group Request
        $Group = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.AccessToken)" } -ContentType 'application/json' -Body $RequestBody -Uri $apiUri -Method Post)



    }

}

function exportplanner {
    <#
    .SYNOPSIS
    This function gets Graph Token from the GetGraphToken Function and uses it to request a new guest user

    .PARAMETER clientID
    -is the app clientID

    .PARAMETER tenantID
    -is the directory ID of the tenancy


    #>
    Param(
        [parameter(Mandatory = $true)]
        $clientId,
        [parameter(Mandatory = $true)]
        $tenantId
    )

    #Generate Token
    $token = GetDelegatedGraphToken -clientID $clientId -TenantID $tenantId

    $Grouplist = ListGroups -token $token

    SetGroupOwnership -token $token -grouplist $grouplist


    ##Loop through Groups in CSV
    foreach ($Group in $Grouplist) {

        ##Build Query
        $apiUri = "https://graph.microsoft.com/beta/groups/$($Group.id)/planner/plans"

        $Plans = RunQueryandEnumerateResults -apiUri $apiUri -token $token.accesstoken


        if ($plans) {

            $plans | Add-Member -Type NoteProperty -Name GroupID -Value $Group.id

            $plans |  export-csv planslist.csv -NoClobber -NoTypeInformation -Append

            foreach ($Plan in $plans) {

                $apiUri = "https://graph.microsoft.com/beta/planner/plans/$($plan.id)/buckets"
                $buckets = RunQueryandEnumerateResults -apiUri $apiUri -token $token.accesstoken
                if ($buckets) {
                    $buckets | export-csv "$($plan.id)-buckets.csv" -NoClobber -NoTypeInformation -Append
                }

            }

            foreach ($Plan in $plans) {

                $apiUri = "https://graph.microsoft.com/beta/planner/plans/$($plan.id)/tasks"

                $tasks = RunQueryandEnumerateResults -apiUri $apiUri -token $token.accesstoken
                if ($tasks) {
                    $tasks  | export-csv "$($plan.id)-tasks.csv" -NoClobber -NoTypeInformation -Append
                }

            }
        }
    }



}
