Use Graph API and PowerShell to Add SecureScore Entries to Planner

I love when we can use different technologies and tools together to create something that really brings value to the table. A lot of the time with Microsoft 365, for a task that is not solved by an Out of the Box solution, the Graph API can tie everything together for us in some really cool and flexible ways.

With the evolution of Cloud services, security is a massive focus for a lot of organizations at the moment and one of the tools Microsoft has made available to help with this is the Microsoft SecureScore. Providing a guideline list of improvement tasks and rating them, it allows organizations to prioritize and focus on the features which add the most value from a security perspective.

This list of improvements is measured and updated as features are enabled, helping to provide a high level roadmap for cloud security. While I think SecureScore provides some useful information and recommendations, I should note that it should not be viewed as the complete security roadmap, there are gaps and context missing from the recommendations made which should be taken into account.

With that said, there’s no arguing that each item should be assessed at least and tracked. To achieve this, I have put together a Graph API / PowerShell script (available on GitHub) which polls the current SecureScore state, extracts the recommended actions and builds them into an instance of Planner. From here they can be given deadlines, assigned to Admins / Teams, notes added etc.

Prerequisites

The first thing we need in place to run the tool is the MSAL.PS PowerShell Module, I have detailed this in a previous post here.

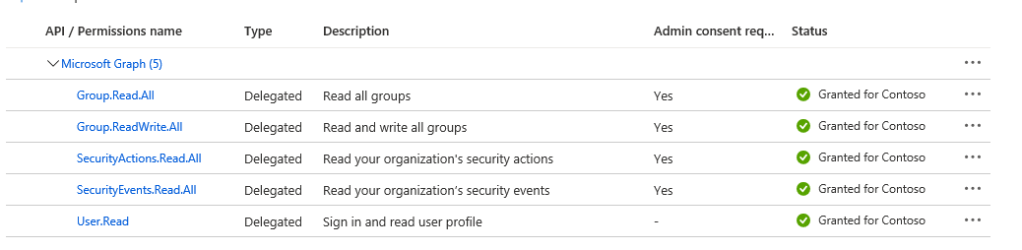

The second thing we need is an application registration (you’ll find some guidance for this in the above post too) with the below delegated permissions assigned:

Running The Script

With the prereqs in place, download and import the script from GitHub using the “import-module graph-Build-SecureScore-Plan.ps1” command in PowerShell.

To run the script we need to pass the TenantID and ApplicationID of our App Reg as in the below example:

ConvertSecurescoretoPlan -tenantID "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" -clientID "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"

You will be asked to sign in using device code authentication as detailed in the previously mentioned post.

The Script will perform the following actions:

  • Create an Office 365 Group named “SecureScore Tracking”
  • Add a Planner instance to this group
  • Add buckets for the categories required by SecureScore
  • Add tasks for each SecureScore recommendation with details explaining the requirement.

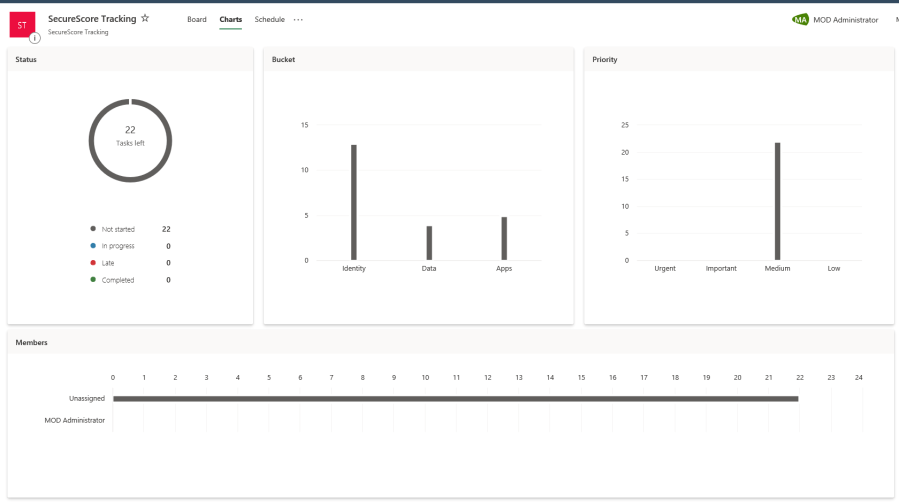

When it finishes up, the account you use will be a member of the group and opening Planner you will see the plan built out from the SecureScore entries:

With the plan created, we can start assigning tasks and actions. The script could also be modified to add additional details etc. if required.

The full script is available on GitHub and below, as always, this script is meant to illustrate the capabilities and provide an example. Please make sure you fully understand and test any code you run in your production environment!

function GetDelegatedGraphToken {

    <#
    .SYNOPSIS
    Azure AD OAuth Application Token for Graph API
    Get OAuth token for a AAD Application using delegated permissions via the MSAL.PS library(returned as $token)

    .PARAMETER clientID
    -is the app clientID

    .PARAMETER tenantID
    -is the directory ID of the tenancy

    .PARAMETER redirectURI
    -is the redirectURI specified in the application registration, default value is https://localhost

    #>

    # Application (client) ID, tenant ID and secret
    Param(
        [parameter(Mandatory = $true)]
        [String]
        $clientID,
        [parameter(Mandatory = $true)]
        [String]
        $tenantID,
        [parameter(Mandatory = $false)]
        $RedirectURI = "https://localhost"
    )

    $Token = Get-MsalToken -DeviceCode -ClientId $clientID -TenantId $tenantID -RedirectUri $RedirectURI

    return $token
}


function RunQueryandEnumerateResults {
    <#
    .SYNOPSIS
    Runs Graph Query and if there are any additional pages, parses them and appends to a single variable

    .PARAMETER apiUri
    -APIURi is the apiUri to be passed

    .PARAMETER token
    -token is the auth token

    #>
    Param(
        [parameter(Mandatory = $true)]
        [String]
        $apiUri,
        [parameter(Mandatory = $true)]
        $token

    )

    #Run Graph Query
    write-host running $apiuri -foregroundcolor blue

    $Results = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token)" } -Uri $apiUri -Method Get)


    #Output Results for debug checking
    #write-host $results

    #Begin populating results
    $ResultsValue = $Results.value

    #If there is a next page, query the next page until there are no more pages and append results to existing set
    if ($results."@odata.nextLink" -ne $null) {
        write-host enumerating pages -ForegroundColor yellow
        $NextPageUri = $results."@odata.nextLink"
        ##While there is a next page, query it and loop, append results
        While ($NextPageUri -ne $null) {
            $NextPageRequest = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token)" } -Uri $NextPageURI -Method Get)
            $NxtPageData = $NextPageRequest.Value
            $NextPageUri = $NextPageRequest."@odata.nextLink"
            $ResultsValue = $ResultsValue + $NxtPageData
        }
    }

    ##Return completed results
    return $ResultsValue


}

function CreateGroup {
    <#
    .SYNOPSIS
    Provisions Office 365 Group to contain Plan

    .PARAMETER token
    -token is the auth token

    #>
    Param(
        [parameter(Mandatory = $true)]
        $token

    )


    ##Build Group Request Body
    $RequestBody = @"
    {
        'description': 'SecureScore Tracking',
        'displayName': 'SecureScore Tracking',
        'groupTypes': [
          'Unified'
        ],
        'mailEnabled': true,
        'mailNickname': 'SecureScoreTracking',
        'securityEnabled': false,
        'members@odata.bind': [
            'https://graph.microsoft.com/v1.0/me'
          ]
    }
"@



    $apiUri = "https://graph.microsoft.com/beta/Groups"
    ##Invoke Group Request
    $Group = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.AccessToken)" } -ContentType 'application/json' -Body $RequestBody -Uri $apiUri -Method Post)

    return $Group
}


function CreatePlan {
    <#
    .SYNOPSIS
    Provisions a Plan in the created group. Returns the Plan object

    .PARAMETER token
    -token is the auth token

    .PARAMETER token
    -the Group ID of the Group created for the planner instance
    #>
    Param(
        [parameter(Mandatory = $true)]
        $token,
        [parameter(Mandatory = $true)]
        $GroupID

    )
    $RequestBody = @"

    {
        'owner': '$($group.id)',
        'title': 'SecureScore Tracking'
      }
"@



    $apiUri = "https://graph.microsoft.com/beta/planner/plans"
    ##Invoke Group Request
    $Plan = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.AccessToken)" } -ContentType 'application/json' -Body $RequestBody -Uri $apiUri -Method Post)


    return $Plan

}

function CreateBuckets {
    <#
    .SYNOPSIS
    Provisions Buckets for each control category.

    .PARAMETER token
    -token is the auth token

    .PARAMETER categories
    -the Catagories to provision as buckets

    .PARAMETER plan
    -the plan to create the buckets in
    #>
    Param(
        [parameter(Mandatory = $true)]
        $token,
        [parameter(Mandatory = $true)]
        $categories,
        [parameter(Mandatory = $true)]
        $Plan

    )

    $Buckets = @()
    foreach ($category in $categories) {
        $RequestBody = @"

    {
        'name': '$category',
        'planId': '$($plan.id)',
        'orderHint': ' !'
      }
"@
        write-host $RequestBody
        $apiUri = "https://graph.microsoft.com/beta/planner/buckets"
        ##Invoke Group Request
        $Bucket = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.AccessToken)" } -ContentType 'application/json' -Body $RequestBody -Uri $apiUri -Method Post)
        $buckets += $bucket
    }

    return $Buckets
}

function CreateTasks {
    <#
    .SYNOPSIS
    Provisions tasks for each item in the relevent Buckets.

    .PARAMETER token
    -token is the auth token

    .PARAMETER Bucket
    -the bucket to associate the task to

    .PARAMETER item
    -the task object
    #>
    Param(
        [parameter(Mandatory = $true)]
        $token,
        [parameter(Mandatory = $true)]
        $Item,
        [parameter(Mandatory = $true)]
        $Bucket

    )


    ##Build Task Request
    $RequestBody = @"
    {
        "planId": '$($Bucket.planid)',
        "bucketId": '$($Bucket.id)',
        "title": '$($Item.controlname.tostring())'
      }
"@


    $apiUri = "https://graph.microsoft.com/v1.0/planner/tasks"
    ##Create Task
    $task = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.AccessToken)" } -ContentType 'application/json' -Body $RequestBody -Uri $apiUri -Method Post)

    ##Add task details
    $RequestBody = @"
        {
        "description": "$($Item.description)"
          }
"@

    $apiUri = "https://graph.microsoft.com/v1.0/planner/tasks/$($task.id)/details"
    $taskdetails = (Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.accesstoken)" } -Uri $ApiUri -Method Get)

    Invoke-RestMethod -Headers @{Authorization = "Bearer $($Token.AccessToken)";'If-Match'=$taskdetails.'@odata.etag'} -ContentType 'application/json' -Body $RequestBody -Uri $apiUri -Method Patch

}


function ConvertSecurescoretoPlan{
    <#
    .SYNOPSIS
    Provisions tasks for each item in the relevent Buckets.

    .PARAMETER tenantID
    -The directory ID of your tenancy

    .PARAMETER clientID
    -the app reg client ID

    #>
    Param(
        [parameter(Mandatory = $true)]
        $tenantID,
        [parameter(Mandatory = $true)]
        $clientID


    )

##Get graph token using MSAL.PS
$token = GetDelegatedGraphToken -clientId $clientID -tenantID $tenantID

##Create a Group to hold the plan
$Group = CreateGroup -token $token

##Wait one minute for Group Provisioning to finish
write-host "Waiting for Group to be provisioned"
start-sleep -Seconds 60

##Create Plan in new group
$Plan = CreatePlan -token $token -GroupID $group.id

##Get SecureScore List
$apiUri = "https://graph.microsoft.com/beta/security/secureScores"
$results = RunQueryandEnumerateResults -apiUri $apiuri -token $token.AccessToken

##Create Buckets for each category
$Buckets = CreateBuckets -categories ($results[0].controlscores.controlcategory | select -Unique) -token $token -Plan $Plan

##Loop through each control entry
foreach ($Entry in $results[0].controlscores) {

    ##Match bucket to task
    $Bucket = $buckets | Where-Object { $_.name -eq $entry.controlCategory }
    ##create a task in the relevent bucket

    CreateTasks -token $token -Item $entry -Bucket $Bucket

}

}
